Drawer Lock (Cabinet Lock) F113

F020

◉Color: White, black

◉Unlocking Way: Password, Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: 114 x 30 x 25.5 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 25uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F021

◉Color: White, black

◉Unlocking Way: Password, Fingerprint

◉Panel Material: Zinc alloy

◉Product Size: 114 x 30 x 25.5 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 25uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F022

◉Color: White, black

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: Φ48 x 24.1 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 20uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F023

◉Color: Black

◉Unlocking Way: Password, E-key

◉Panel Material: ABS

◉Product Size: 95 x 23.5 x 17.4 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 15uA

◉Operating Current: ≤ 180mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F025

◉Color: Black

◉Unlocking Way: Password, E-key

◉Panel Material: ABS

◉Product Size: 95 x 23.5 x 17.4 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 15uA

◉Operating Current: ≤ 180mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F029

◉Color: Black

◉Unlocking Way: Password, E-key

◉Panel Material: ABS

◉Product Size: Φ50.5 x 21 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 5uA

◉Operating Current: ≤ 180mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F030

◉Color: Gun color, Spray paint black

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: Φ32 x 16.5 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 20uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F033

◉Color: Gun color, Spray paint black

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: Φ32 x 23.3 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 20uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F035

◉Color: Black

◉Unlocking Way: Password

◉Panel Material: Zinc alloy

◉Product Size: 30 x 25.5 x 114 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 15uA

◉Operating Current: < 150mA (400ms)

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: 0℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F034

◉Color: Black

◉Unlocking Way: Password, IC card

◉Panel Material: Zinc alloy

◉Product Size: 114 x 30 x 26.8 mm

◉Power Supply Method: 3*AA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 50uA

◉Operating Current: ≤ 200mA (BF05)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F040

◉Color: Black, Silver, Gold

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: ABS

◉Product Size: 32 x 32 x 19.4 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F045

◉Color: Black

◉Unlocking Way: Fingerprint

◉Panel Material: Zinc alloy

◉Product Size: Φ40 x 19.85 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F046

◉Color: Black

◉Unlocking Way: Fingerprint

◉Panel Material: Zinc alloy

◉Product Size: 34 x 40 x 38 mm

◉Power Supply Method: Rechargeable lithium battery

◉Supply Voltage: 3.7V

◉Static Current: ≤ 20uA

◉Operating Current: ≤ 220mA

◉Low Voltage Alarm Electricity: 3.3V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 3 months(use 10 times a day)

F048

◉Color: Black

◉Unlocking Way: Fingerprint

◉Panel Material: Zinc alloy

◉Product Size: Φ34 x 77 mm

◉Power Supply Method: Rechargeable lithium battery

◉Supply Voltage: 3.7V

◉Static Current: ≤ 20uA

◉Operating Current: ≤ 220mA

◉Low Voltage Alarm Electricity: 3.3V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 3 months(use 10 times a day)

F050

◉Color: Plating color

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: Φ34 x 14.3 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F051

◉Color: Black

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: 40.8 x 83 x 9 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F053

◉Color: Black

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: 40.75 x 53 x 9 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F057

◉Color: Black

◉Unlocking Way: Password, Fingerprint

◉Panel Material: ABS

◉Product Size: 96 x 51.9 x 17 mm

◉Power Supply Method: 3*AA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 25uA

◉Operating Current: ≤ 220mA (BF05)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F058

◉Color: Black

◉Unlocking Way: Password, Fingerprint

◉Panel Material: ABS

◉Product Size: 96 x 51.9 x 17 mm

◉Power Supply Method: 3*AA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 200mA (BF05)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F059

◉Color: Black

◉Unlocking Way: Password, Mifare card

◉Panel Material: ABS

◉Product Size: 96 x 51.9 x 17 mm

◉Power Supply Method: 3*AA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤200mA (BF05)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F070

◉Color: Black

◉Unlocking Way: Password, Key

◉Panel Material: ABS

◉Product Size: 88 x 52.5 x 40.5 mm

◉Power Supply Method: 2*AAA alkaline batteries

◉Supply Voltage: 3V

◉Static Current: ≤ 25uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 2.4V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F071

◉Color: Black

◉Unlocking Way: Password, Key

◉Panel Material: Zinc alloy

◉Product Size: 110 x 31 x 48.3 mm

◉Power Supply Method: 2*AAA alkaline batteries

◉Supply Voltage: 3V

◉Static Current: ≤ 25uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 2.4V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F109

◉Color: Black

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: ABS

◉Product Size: Φ35 x 17.5 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F110

◉Color: Black

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: ABS

◉Product Size: 32 x 32 x 22 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F112

◉Color: Gold, Silver, Black, Gray, Black Rush, Brushed

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: 38 x 41 x 18 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

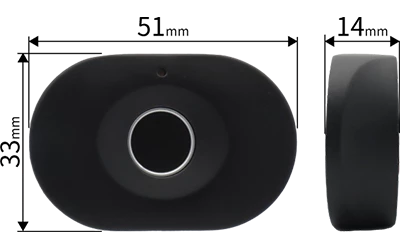

F113

◉Color: Gold, Silver, Black, Gray, Black Rush, Brushed

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: 33 x 51 x 14 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F115

◉Color: Gold, Silver, Black, Gray, Black Rush, Brushed

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: 29.5 x 44 x 27 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F118

◉Color: Gold, Silver, Black, Gray, Black Rush, Brushed

◉Unlocking Way: Fingerprint, E-key

◉Panel Material: Zinc alloy

◉Product Size: 100 x 44 x 22 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F116

◉Color: Black, gold

◉Unlocking Way: Swipe card

◉Panel Material: Aluminium alloy

◉Product Size: 52 x 17 x 96 mm

◉Power Supply Method: 4*AA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 30uA

◉Operating Current: < 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: -5℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F120

◉Color: Black

◉Unlocking Way: Fingerprint

◉Panel Material: Zinc alloy

◉Product Size: Φ35 x 17.5 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: 3.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)

F125

◉Color: Black, gold

◉Unlocking Way: Swipe card

◉Panel Material: Aluminium alloy

◉Product Size: Φ42 x 15 mm

◉Power Supply Method: 4*AA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 30uA

◉Operating Current: < 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: -5℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F123S

◉Color: Black

◉Unlocking Way: Fingerprint

◉Panel Material: ABS

◉Product Size: 42 x 20 x 32 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: wu

◉Static Current: < 30uA

◉Operating Current: < 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: -5℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F122S

◉Color: Black

◉Unlocking Way: Fingerprint

◉Panel Material: ABS

◉Product Size: 34.51 x 20 x 32 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: wu

◉Static Current: < 30uA

◉Operating Current: < 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: -5℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F127

◉Color: Black, gold

◉Unlocking Way: Swipe card

◉Panel Material: Aluminium alloy

◉Product Size: Φ42 x 15 mm

◉Power Supply Method: 4*AA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: 0℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F129

◉Color: Black, gold

◉Unlocking Way: Swipe card

◉Panel Material: Aluminium alloy

◉Product Size: Φ42 x 15 mm

◉Power Supply Method: 4*AA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 30uA

◉Operating Current: ≤ 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: 0℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F131

◉Color: Black, gold

◉Unlocking Way: Swipe card

◉Panel Material: Aluminium alloy

◉Product Size: 72 x 16 x 22 mm

◉Power Supply Method: 4*AA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 30uA

◉Operating Current: < 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: -5℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F132

◉Color: Black, gold

◉Unlocking Way: Swipe card

◉Panel Material: Aluminium alloy

◉Product Size: 22 x 16 x 128 mm

◉Power Supply Method: 4*AA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 30uA

◉Operating Current: < 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: -5℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F138

◉Color: Black

◉Unlocking Way: Fingerprint

◉Panel Material: ABS

◉Product Size: 32 x 20 x 39.81 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: wu

◉Static Current: ≤ 30uA

◉Operating Current: < 150mA

◉Low Voltage Alarm Electricity: wu

◉Operating Temperature: -5℃-50℃

◉Operating Humidity: wu

◉Battery Life: More than 1 year (used 10 times a day)

F BF19

◉Color: Black

◉Unlocking Way: Fingerprint, IC card, Password

◉Panel Material: ABS

◉Product Size: 59 x 72 x 22 mm

◉Power Supply Method: 3*AAA alkaline batteries

◉Supply Voltage: 4.5V

◉Static Current: ≤ 40uA

◉Operating Current: ≤ 220mA (BF06)

◉Low Voltage Alarm Electricity: Less than 4.6V±0.2V

◉Operating Temperature: 0℃-55℃

◉Operating Humidity: < 85%H (no condensation)

◉Battery Life: More than 1 year (used 10 times a day)
